Simpson Strong-Tie Wedge-All, Concrete Anchor 3/8" x 2 1/4" Stainless Steel
Non-bottom bearing, wedge-style expansion anchor for use in solid concrete or grout-filled concrete masonry. Comes with Nut and Washer. Replaced by UCAISS38214

Wedge-All, Concrete Anchor 3/8" x 2 1/4" Stainless Steel


Non-bottom bearing, wedge-style expansion anchor for use in solid concrete or grout-filled concrete masonry. Comes with Nut and Washer. Replaced by UCAISS38214

Product #: SIMWA372144SS

$338.10 /100PC
Login for contractor price
Regular: $338.10 /

338.1

/100PC

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Call for Availability : (403) 342-6030


QTY:

ADD TO CART
BUY DIRECT

Simpson Strong-Tie

No customer reviews for the moment.

Product Description

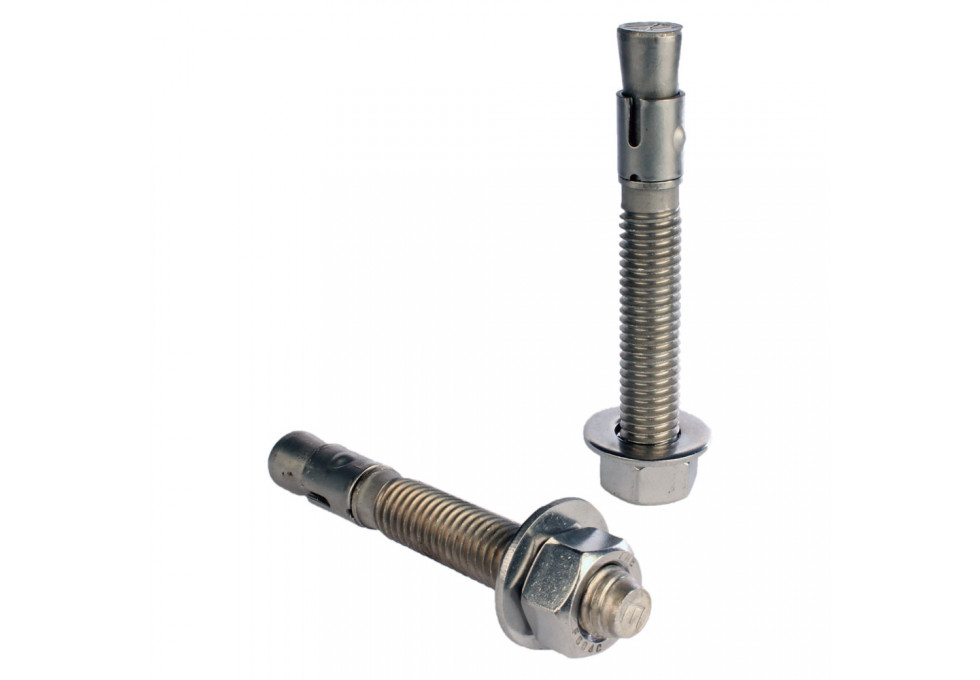

The Simpson Strong-Tie Wedge-All, Concrete Anchor 3/8" x 2 1/4" Stainless Steel.

Simpson Strong-Tie Anchoring and Fastening Systems for Concrete and Masonry. Wedge-All Wedge Anchors. The Wedge-All wedge anchors are a non-bottom bearing, wedge-style expansion anchor for use in solid concrete or grout-filled concrete masonry. A one-piece clip ensures uniform holding capacity that increases as tension is applied. The threaded stud version is available in eight diameters and multiple lengths. A single size tie-wire version is available for wire supported fixtures. Threaded studs are set by tightening the nut. Tie-wire anchors are set with the claw end of a hammer.

  • One piece wrap around clip
  • Threaded end is chamfered for ease of starting nut
  • Most sizes feature full thread for added versatility
  • MATERIAL: Carbon and stainless steel
  • FINISH: Carbon steel anchors are available zinc plated or mechanically galvanized.

Specifications

   Size   Type 304/303 Stainless Model No.   Type 316 Stainless Model No.   Drill Bit Dia.   Thread Length   Box Qty   Ctn Qty
   1/4" x 1-3/4"   WA251344SS   WA251346SS   1/4"   15/16"   100   500
   1/4" x 2-1/4"   WA252144SS   WA252146SS   1/4"   1-7/16"   100   500
   1/4" x 3-1/4"   WA253144SS   WA253146SS   1/4"   2-7/16"   100   500
   3/8" x 2-1/4"   WA372144SS   WA372146SS   3/8"   1-1/8"   50   250
   3/8" x 3"   WA373004SS   WA373006SS   3/8"   1-7/8"   50   250
   3/8" x 3-3/4"   WA373344SS   WA373346SS   3/8"   2-5/8"   50   250
   3/8" x 5"   WA375004SS   WA375006SS   3/8"   3-7/8"   50   250
   3/8" x 7"   WA377004SS   WA377006SS   3/8"   5-7/8"   50   250
   1/2" x 3-3/4"   WA503344SS   WA503346SS   1/2"   2-5/16"   25   125
   1/2" x 4-1/4"   WA504144SS   WA504146SS   1/2"   2-13/16"   25   125
   1/2" x 7"   WA507004SS   WA507006SS   1/2"   5-9/16"   25   125
   1/2" x 8-1/2"   WA50812SS   WA508123SS   1/2"   2"   25   125
   5/8" x 3-1/2"   WA623124SS   WA623126SS   5/8"   1-7/8"   20   80
   5/8" x 4-1/2"   WA624124SS   WA624126SS   5/8"   2-7/8"   20   80
   5/8" x 5"   WA625004SS   WA625006SS   5/8"   3-3/8"   20   80
   5/8" x 6"   WA626004SS   WA626006SS   5/8"   4-3/8"   20   80
   5/8" x 7"   WA627004SS   WA627006SS   5/8"   5-3/8"   20   80
   5/8" x 8-1/2"   WA62812SS   WA628123SS   5/8"   2"   20   40
   3/4" x 4-1/4"   WA754144SS   WA754146SS   3/4"   2-3/8"   10   40
   3/4" x 5-1/2"   WA755124SS   WA755126SS   3/4"   3-5/8"   10   40
   3/4" x 6-1/4"   WA756144SS   WA756146SS   3/4"   4-3/8"   10   40
   3/4" x 7"   WA757004SS   WA757006SS   3/4"   5-1/8"   10   40
   3/4" x 10"   WA75100SS   WA751003SS   3/4"   2-1/4"   10   20
   3/4" x 12"   WA75120SS   WA751203SS   3/4"   2-1/4"   5   10
   1" x 9"   WA19000SS   WA190003SS   1"   2-1/4"   5   10


Approximate Item/Package Dimensions in inches

  • Width: 0.88
  • Height: 0.88
  • Depth: 2.25

Approximate Item/Package Weight in pounds

  • Weight: 0.08
Product Specifications
Vendor Part #:WA372144SS
