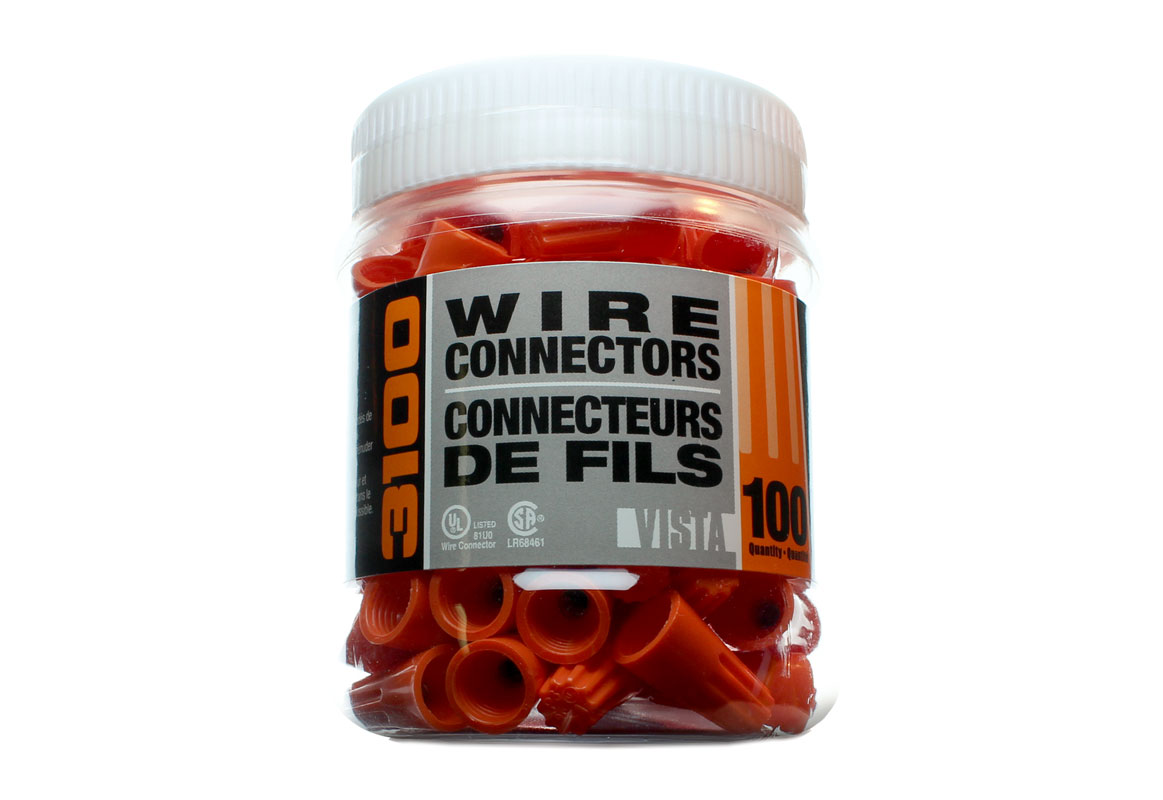

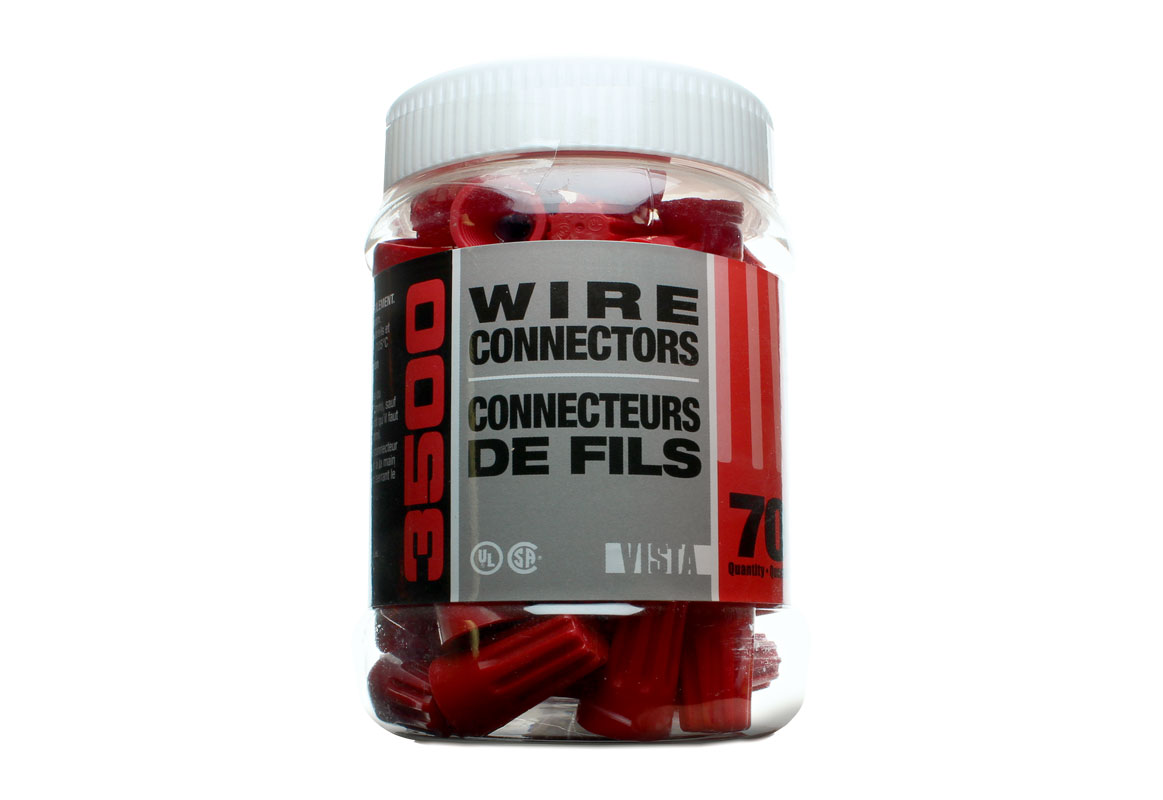

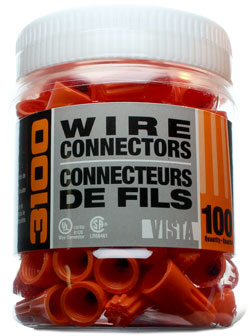

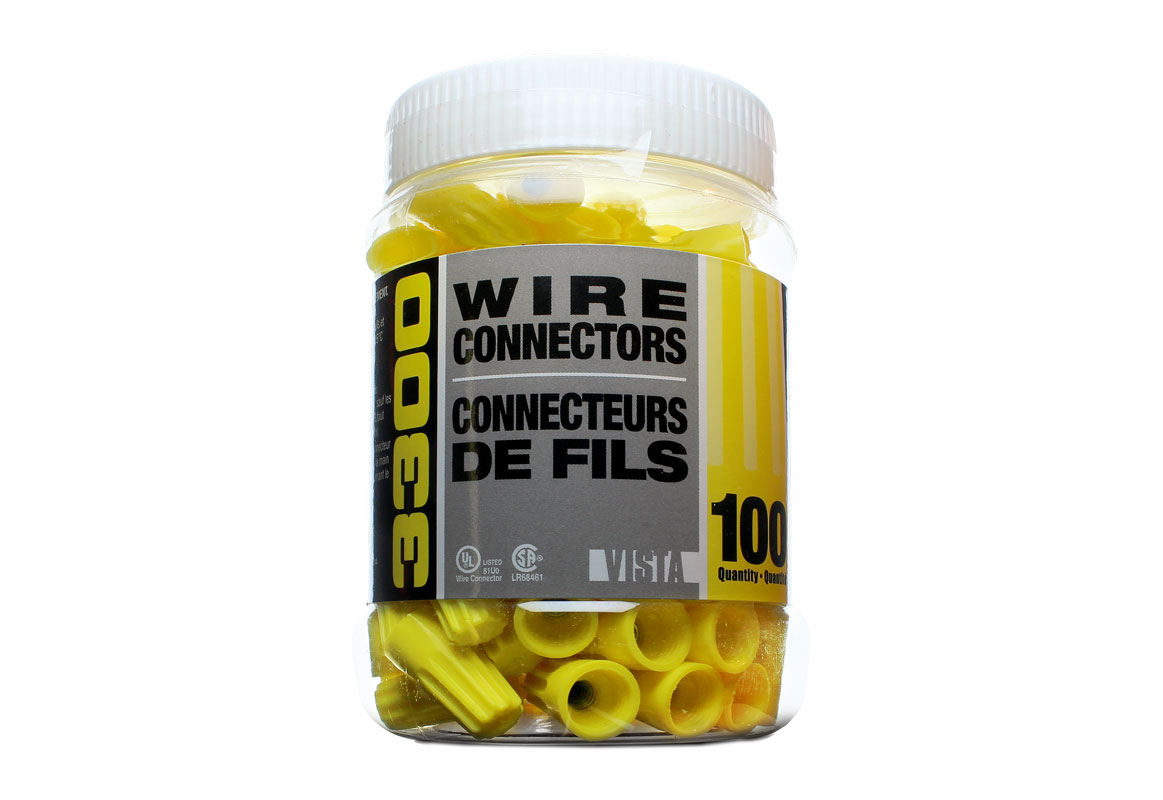

Cathelle Wire Connector - Twist-On - Copper Wire / 3000 Series
Plastic - Copper Wire Only - Rated to 105 °C - Dry Use Only - 600 V - For connecting 2 or more copper electrical wires together to create a secure, insulated connection
Wire Connector - Twist-On - Copper Wire / 3000 Series
Plastic - Copper Wire Only - Rated to 105 °C - Dry Use Only - 600 V - For connecting 2 or more copper electrical wires together to create a secure, insulated connection
Product #: CAT3036
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Options: Color: Orange
Info:
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Product Description
These Cathelle Twist-On Wire Connectors are built to securely connect, 2 or more low-current electrical copper wires together.
Build
These wire connectors are made with insulated plastic and have a metal coil insert.
Easily twist bare copper wire together to make a strong electrical connection.
These are rated for dry use only.
Perfect for copper to copper wire connections!
Safety
Do NOT use on aluminum wires.
600 V Maximum (1000 V in signs and fixtures).
Rated for up to 105 °C.
Capacities
| 22 AWG | 20 AWG | 18 AWG | 16 AWG | 14 AWG | 12 AWG | 10 AWG | |
| Orange P3 | Yes | Yes | Yes | ||||
| Yellow P4 | Yes | Yes | Yes | Yes | Yes | ||
| Red P6 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
How to Use
- Disconnect power
- Strip solid or stranded wires
- Refer to packaging for stripping length per wire gauge
- Push wires into connector and hand twist connector clockwise as tightly as possible
Certifications, Standards, and Regulations
- UL Listed
- CSA Approved
Product Specifications
| Vendor Part #: | 3036 |
| Material: | Insulated Plastic |
| Max Temperature: | 105 °C |
| Voltage Rating: | 600 |
| Wire Type: | Copper |
