Calfast Trusted Vendor Strut Channel - 1-5/8" - Single - 10' / Pre-Galvanized Steel *12 GAUGE
12 Gauge - 1-5/8" x 1-5/8" x 10' - LOW CARBON STEEL - COLD FORMED - Pre-Galvanized Finish - Steel Framing Strut Channel - Built with Inturned Lips Along its Length

Strut Channel - 1-5/8" - Single - 10' / Pre-Galvanized Steel *12 GAUGE


12 Gauge - 1-5/8" x 1-5/8" x 10' - LOW CARBON STEEL - COLD FORMED - Pre-Galvanized Finish - Steel Framing Strut Channel - Built with Inturned Lips Along its Length

Product #: BLIB22SH-120GLV
Options: Hole Pattern: 9/16” x 1-1/8” slots on 2" centers; Height: 1-5/8"; Width: 1-5/8"
Info: Sold in 10' Sections

$3.50 /FT
Login for contractor price
Regular: $3.50 /

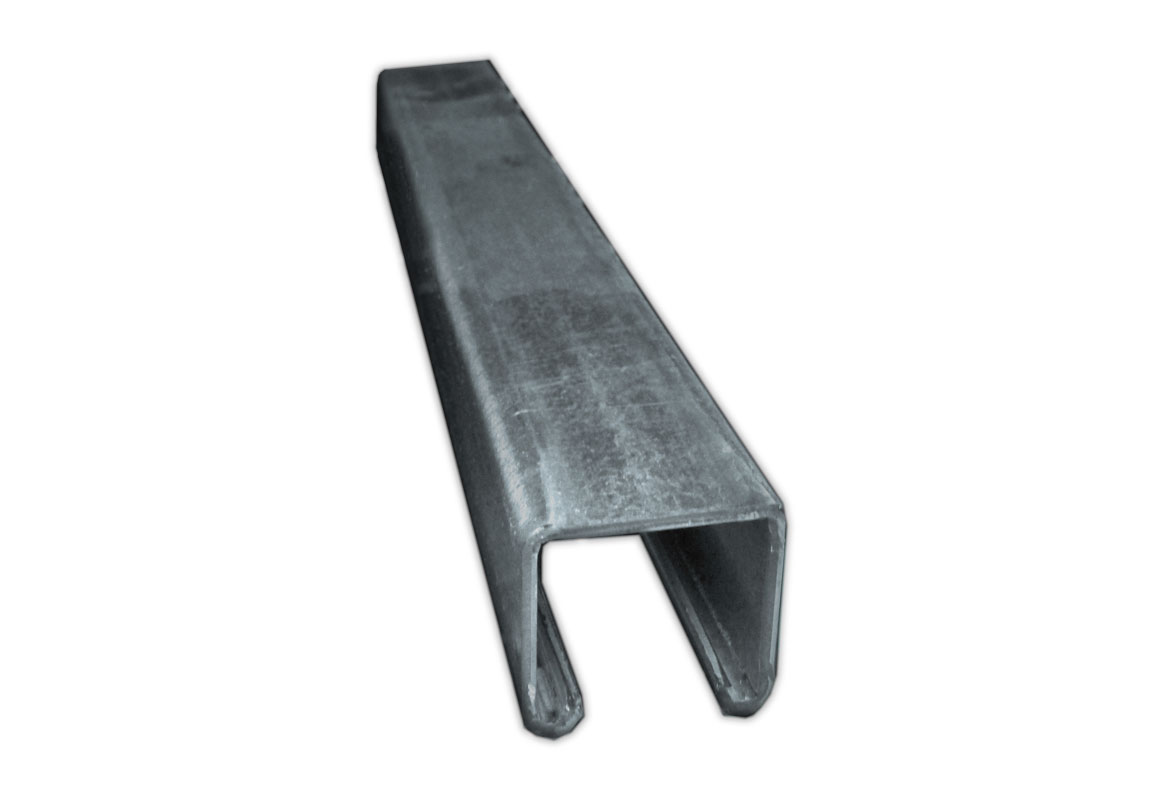

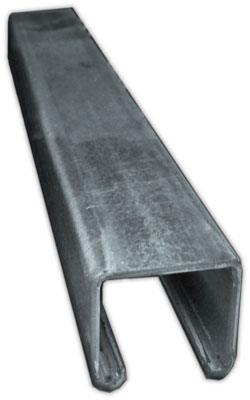

BLIB22-120GLV Solid (No Holes), 1-5/8", 1-5/8" Sold in 10' Sections , InStock
$3.95 /FT

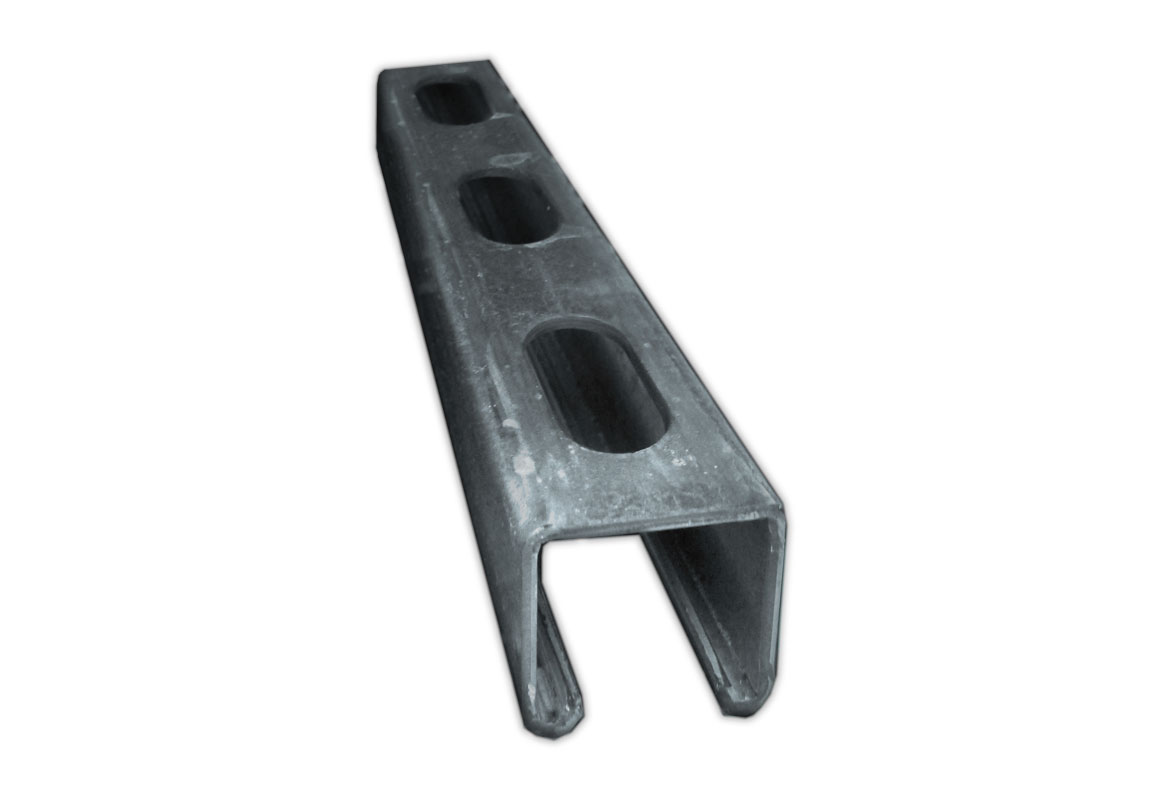

BLIB22SH-120GLV 9/16” x 1-1/8” slots on 2" centers, 1-5/8", 1-5/8" Sold in 10' Sections , InStock
$3.50 /FT
Hole Pattern
Height
Width
Info
Qty Info
PROD #
Price
Solid (No Holes)
1-5/8"
1-5/8"
Sold in 10' Sections

Sold per 10

Min Buy of 10

BLIB22-120GLV
$3.95 /FT
9/16” x 1-1/8” slots on 2" centers
1-5/8"
1-5/8"
Sold in 10' Sections

Sold per 10

Min Buy of 10

BLIB22SH-120GLV
$3.50 /FT

3.5

/FT

This combination does not exist. Please select another one.
Available Online: 20980
Pre Order Item
Estimated Availability Date:
Availability in Store:

This item is sold in multiple of 10.
Minimal order quantity for this item is 10.

Call for Availability : (403) 342-6030


QTY:

ADD TO CART
BUY DIRECT
BLIB22-120GLV Solid (No Holes), 1-5/8", 1-5/8" Sold in 10' Sections
$3.95 /FT
BLIB22SH-120GLV 9/16” x 1-1/8” slots on 2" centers, 1-5/8", 1-5/8" Sold in 10' Sections
$3.50 /FT
Hole Pattern
Height
Width
Info
Qty Info
PROD #
Price
Solid (No Holes)
1-5/8"
1-5/8"
Sold in 10' Sections

Sold per 10

Min Buy of 10

BLIB22-120GLV
$3.95 /FT
9/16” x 1-1/8” slots on 2" centers
1-5/8"
1-5/8"
Sold in 10' Sections

Sold per 10

Min Buy of 10

BLIB22SH-120GLV
$3.50 /FT

Products supplied by vendors that we trust.

No customer reviews for the moment.

Product Description

Metal Framing Channel - Cold Formed STRUT
√ STEEL - 12 Gauge

Pre-Galvanized Finish
ASTM A653
LOW CARBON STEEL

X-AXIS
  • Moment of Inertia (I): 0.1912 inch4
  • Section of Modulus (S): 0.2125 inch3
  • Radius of Gyration (r): 0.583 inch
Y-AXIS
  • Moment of Inertia (I): 0.2399 inch4
  • Section of Modulus (S): 0.2953 inch3
  • Radius of Gyration (r): 0.653 inch
Strut Dimensions

Build

Built with inturned lips providing the ability to make attachments at any point.

Slotted strut eliminates the need for precise field measuring for hole locations and comes in a variety of pre-punched patterns.

Excellent for individual fastening or for efficiently constructing pipe or tube routes and more!

Material

By cold working the steel, mechanical properties are increased, allowing lightweight structures to carry the required load.

Corrosion resistance of carbon steel varies widely with coating and alloy.

Finish

Pre-Galvanized steel is produced by coating coils of sheet steel with zinc by continuously rolling the material through molten zinc at the mills.

The G90 specification calls for a coating of .90 ounces of zinc per square foot of steel. This results in a coating of .45 ounces per square foot on each side of the sheet.

During fabrication, cut edges and welded areas are not normally zinc coated; however, the zinc near the uncoated metal becomes a sacrificial anode to protect the bare areas after a short period of time.

  • Strut Channel: A strut channel is a standardized light-duty structural support system used in the construction and electrical industries.
Product Specifications
Vendor Part #:B22-120GLV
Finish:Pre-Galvanized
Height:[1-5/8 inches]
Length:[10 feet]
Material:Low Carbon Steel
Thickness:[12 gauge]
Type:Single
Weight:[1.910 lbs./ft.]
Width:[1-5/8 inches]
  • Mounting
  • Bracing
  • Supporting
  • Hanging overhead electrical wire
  • Connect lightweight structural loads in building construction
