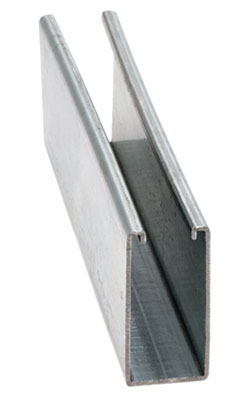

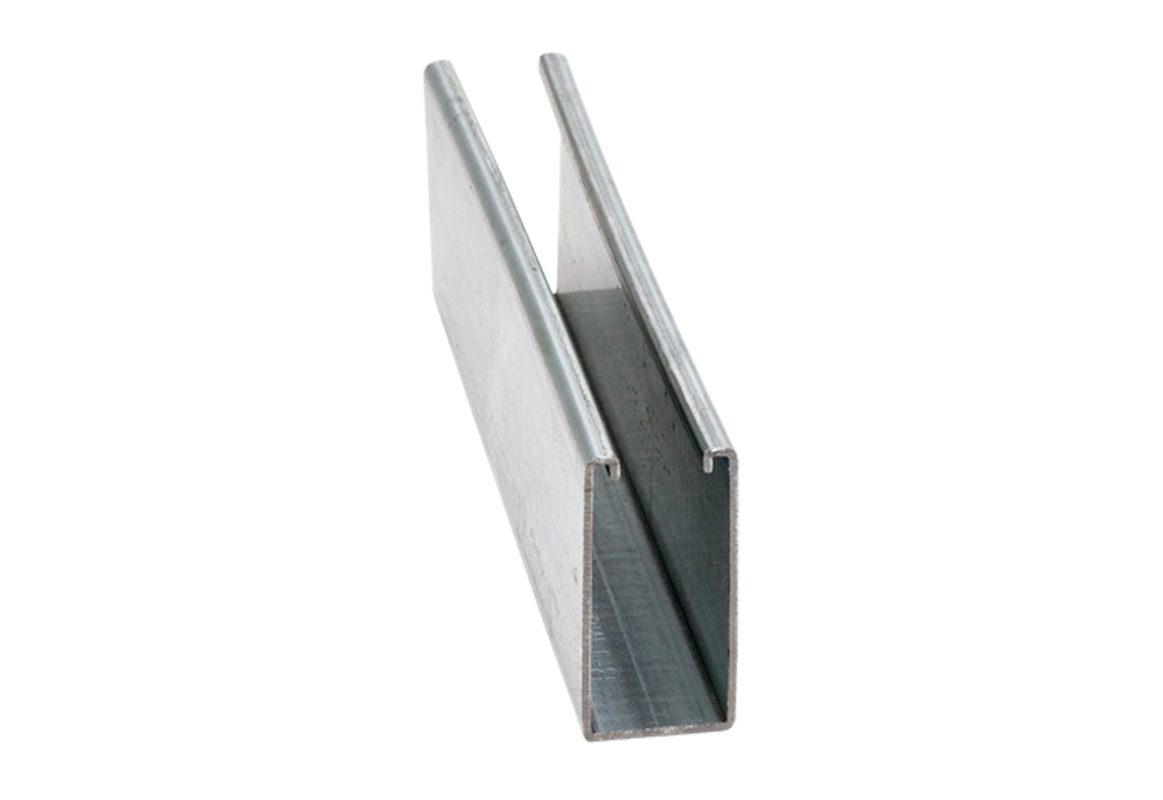

Cooper B-Line Strut Channel - 3-1/4" - Single - 20' / Pre-Galvanized Steel *12 GAUGE
12 Gauge - 1-5/8" x 3-1/4" x 20' - LOW CARBON STEEL - COLD FORMED - Pre-Galvanized Finish - Steel Framing Strut Channel - Built with Inturned Lips Along its Length

Strut Channel - 3-1/4" - Single - 20' / Pre-Galvanized Steel *12 GAUGE


12 Gauge - 1-5/8" x 3-1/4" x 20' - LOW CARBON STEEL - COLD FORMED - Pre-Galvanized Finish - Steel Framing Strut Channel - Built with Inturned Lips Along its Length

Product #: CBLB11-240GLV
Options: Hole Pattern: Solid (No Holes); Height: 3-1/4"; Width: 1-5/8"
Info:

Pls.Call

0

/EA

$23.57

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

This item is sold in multiple of 20.
Minimal order quantity for this item is 20.

Please Call for Special Orders : (403) 342-6030


QTY:

ADD TO CART
BUY DIRECT

Cooper B-Line

No customer reviews for the moment.

Product Description

Metal Framing Channel - Cold Formed STRUT
√ STEEL - 12 Gauge

Pre-Galvanized Finish
ASTM A653
LOW CARBON STEEL

X-AXIS
  • Moment of Inertia (I): 1.1203 inch4
  • Section of Modulus (S): 0.6472 inch3
  • Radius of Gyration (r): 1.116 inch
Y-AXIS
  • Moment of Inertia (I): 0.4357 inch4
  • Section of Modulus (S): 0.5362 inch3
  • Radius of Gyration (r): 0.696 inch

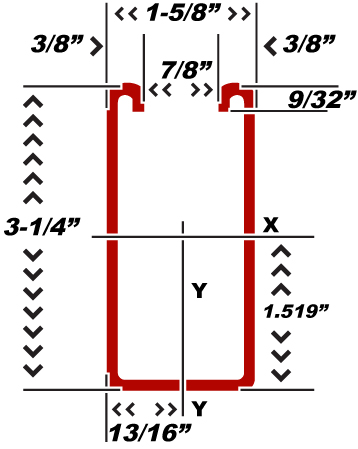

3-1/4" Strut Diagram

Build

Built with inturned lips providing the ability to make attachments at any point.

Slotted strut eliminates the need for precise field measuring for hole locations and comes in a variety of pre-punched patterns.

Excellent for individual fastening or for efficiently constructing pipe or tube routes and more!

Material

By cold working the steel, mechanical properties are increased, allowing lightweight structures to carry the required load.

Corrosion resistance of carbon steel varies widely with coating and alloy.

Finish

Pre-Galvanized steel is produced by coating coils of sheet steel with zinc by continuously rolling the material through molten zinc at the mills.

The G90 specification calls for a coating of .90 ounces of zinc per square foot of steel. This results in a coating of .45 ounces per square foot on each side of the sheet.

During fabrication, cut edges and welded areas are not normally zinc coated; however, the zinc near the uncoated metal becomes a sacrificial anode to protect the bare areas after a short period of time.

  • Strut Channel: A strut channel is a standardized light-duty structural support system used in the construction and electrical industries.
Product Specifications
Vendor Part #:B11-240GLV
Finish:Pre-Galvanized
Height:[3-1/4 inches]
Length:[20 feet]
Material:Low Carbon Steel
Thickness:[12 gauge]
Type:Single
Weight:[3.059 lbs./ft.]
Width:[1-5/8 inches]
  • Hanging overhead electrical wire
  • Mounting
  • Bracing
  • Supporting
  • Connect lightweight structural loads in building construction
