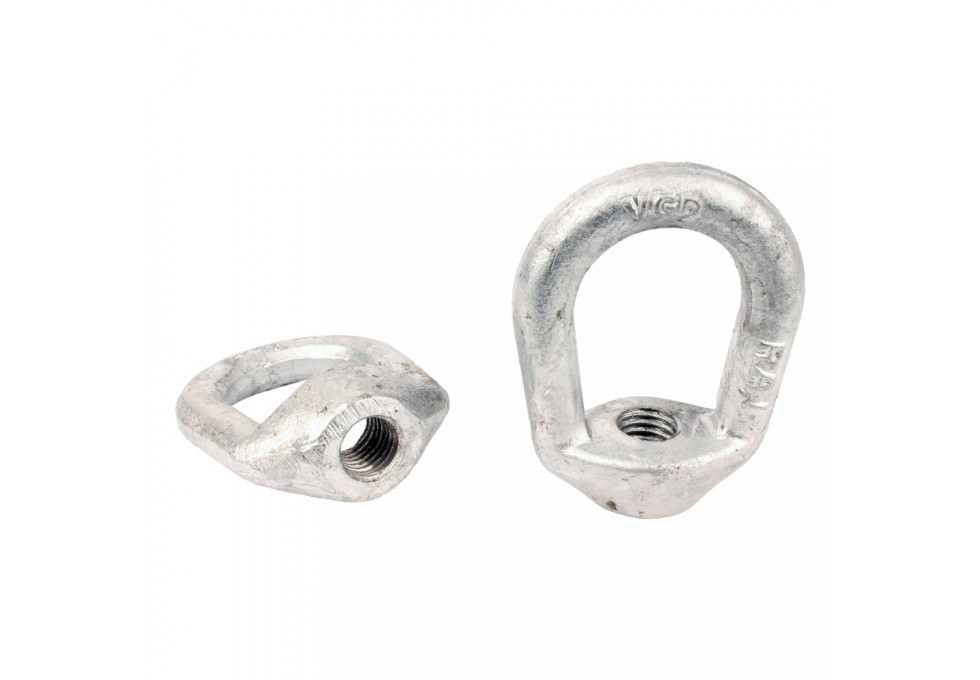

Vanguard Steel 5/8" Forged Eye Nut, Grade 2 Galvanized, UNC
Forged carbon steel, quenched and tempered, hot dipped galvanized.
5/8" Forged Eye Nut, Grade 2 Galvanized, UNC
Forged carbon steel, quenched and tempered, hot dipped galvanized.
Product #: VAN2974-0032
Shipping calculation is unavailable at this time. Please call 403-342-6030 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 403-342-6030
QTY:
BUY DIRECT
Product Description
The Vanguard 5/8" Forged Eye Nut, Grade 2 Galvanized, UNC.
- Permanently embossed with trace code, VG © and size for traceability to meet ASME B30.26
- Forged carbon steel
- Quenched and tempered
- Hot dipped galvanized
- UNC Threads
- Design factor proof load 2:1 WLL, ultimate load 5:1 WLL
Specifications
| Note: order by tap size, markings on the eye nut are for the body stock size | |||||||||||
| Dimensions (in): | |||||||||||
| Nominal | 1/2 | ||||||||||
| Tap Size | 5/8 | ||||||||||
| A | 2.523 | ||||||||||
| C | 1.488 | ||||||||||
| D | 1.947 | ||||||||||
| E | 1.186 | ||||||||||
| S | 0.517 | ||||||||||
| T | 3.242 | ||||||||||
| M | 0.538 | ||||||||||
| WLL (lbs) | 3,600 | ||||||||||
| Weight (lbs) | .58 | ||||||||||
| Vanguard Code | 2974.0032 | ||||||||||
| Size | 4 |
Approximate Item/Package Dimensions in inches
- Width: 2.625
- Height: 1.25
- Depth: 3.25
Approximate Item/Package Weight in pounds
- Weight: 0.576
Product Specifications
| Vendor Part #: | 29740032 |
